CAT6A UTP Punch-Down Keystone Jack - Straight

Product Selection Menu

For stock availability and product enquiries.

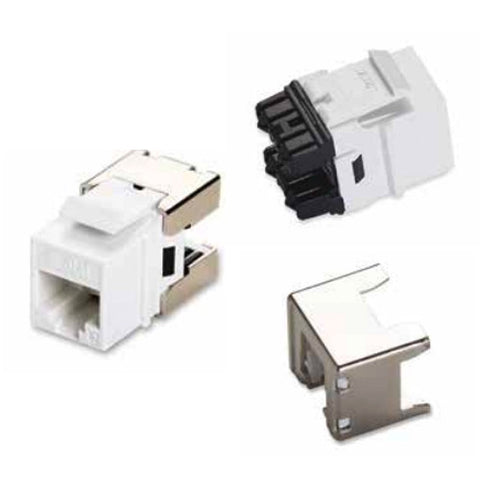

15A6ANV008A-WK61 | CAT6A 8P8C Unshielded RJ45 Punch-Down Keystone Straight Jack - AT&T

Average ETA for Additional Units  Contact Us
Product Datasheet Download

AT&T CopperLine Category 6A 8P8C Unshielded RJ45 180º Straight Punch-Down Keystone Jacks are designed to the highest standards in the industry.

This product is fully tested to exceed industry standards and is part of the AT&T Certified Installer Millennium Lifetime Warranty.


  • Frequency range: 1-500 MHz
  • Compatible conductors: 22-26 AWG Solid or stranded
  • Pin-pair assignment: T568A & T568B (Universal)
  • Contacts: 50µ-Inch Gold plating
  • Shield: None
  • Housing: High impact FR compound
  • Standard Colour: White and Black

Mechanical & Electrical Properties:

  • Orientation: 180º
  • Termination blocks: 110 IDC
  • Insertion/withdrawal: 750 cycles
  • Cable re-termination: 20 terminations
  • Operating temperature: -20 to +60C at 5-95% RH (non condensing)
  • Ampacity: 1.5 A max.
  • Contact resistance: 20 mOhm max.
  • DC resistance: 0.1 Ohm max.
  • Voltage rating: 75 Vdc max.
  • Insulation resistance: 500 MegaOhm min. @500 Vdc
  • Straight jacks are compatible with 24-port & 48-port 1U panels
  • Recommended punch-down tool: AT&T MultiPunch 4-pair hand-tool
Part Number Product Description
15A6ANV008A-WK61 CAT6A 8P8C Unshielded RJ45 Punch-Down Keystone Jack - Straight
